Differential methylation on the site level was computed based on a variety of metrics. Of particular interest for the following plots and analyses are the following quantities for each site: a) the difference in mean methylation levels of the two groups being compared, b) the quotient in mean methylation and c) a statistical test (limma or t-test depending on the settings) assessing whether the methylation values in the two groups originate from distinct distributions. Additionally each site was assigned a rank based on each of these three criteria. A combined rank is computed as the maximum (i.e. worst) rank among the three ranks. The smaller the combined rank for a site, the more evidence for differential methylation it exhibits. This section includes scatterplots of the site group means as well as volcano plots of each pairwise comparison colored according to the combined ranks or p-values of a given site.
The following rank cutfoffs have been automatically selected for the analysis of differentially methylated sites:
| Rank Cutoff | |
| R01C01 vs. non.R01C01 (based on Sentrix position) | 22259 |
| R01C02 vs. non.R01C02 (based on Sentrix position) | 108908 |
| R02C01 vs. non.R02C01 (based on Sentrix position) | 90162 |
| R02C02 vs. non.R02C02 (based on Sentrix position) | 3783 |
| R03C01 vs. non.R03C01 (based on Sentrix position) | 162 |
| R03C02 vs. non.R03C02 (based on Sentrix position) | 0 |
| R04C01 vs. non.R04C01 (based on Sentrix position) | 80 |
| R04C02 vs. non.R04C02 (based on Sentrix position) | 100032 |
| R05C01 vs. non.R05C01 (based on Sentrix position) | 75110 |
| R05C02 vs. non.R05C02 (based on Sentrix position) | 0 |
| R06C01 vs. non.R06C01 (based on Sentrix position) | 45377 |
| R06C02 vs. non.R06C02 (based on Sentrix position) | 49190 |
| Primary solid Tumor vs. Recurrent Solid Tumor (based on Type) | 95056 |
| FEMALE vs. MALE (based on Gender) | 92989 |
| HISPANIC OR LATINO vs. NOT HISPANIC OR LATINO (based on Ethnicity) | 106449 |
| BLACK OR AFRICAN AMERICAN vs. WHITE (based on Race) | 105040 |
| DECEASED vs. LIVING (based on Vital status) | 0 |
| mutated vs. wild type (based on IDH1) | 107977 |
| negative vs. positive (based on G-CIMP status) | 97450 |
| female vs. male (based on Predicted Gender) | 76805 |
| comparison | |
| differential methylation measure |

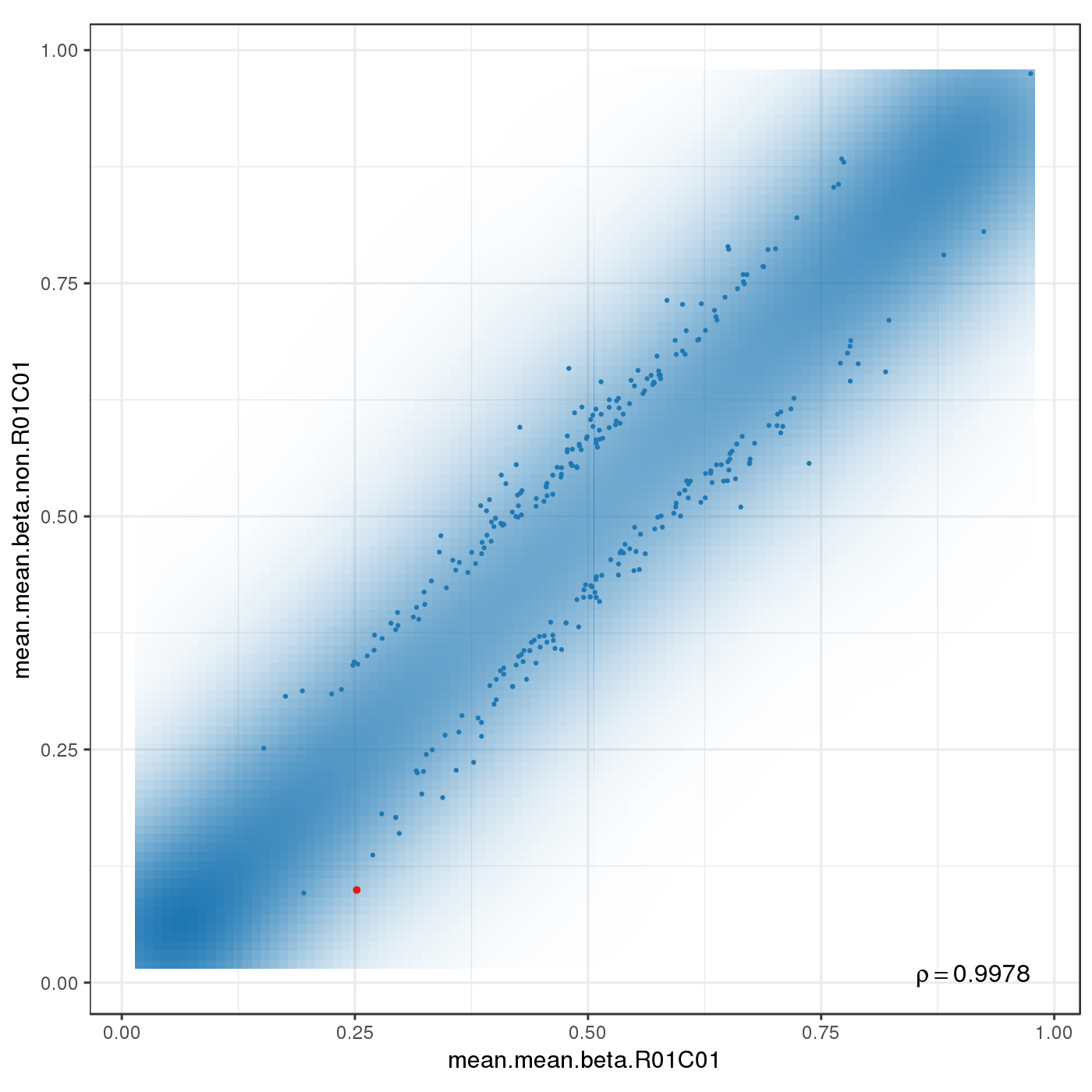

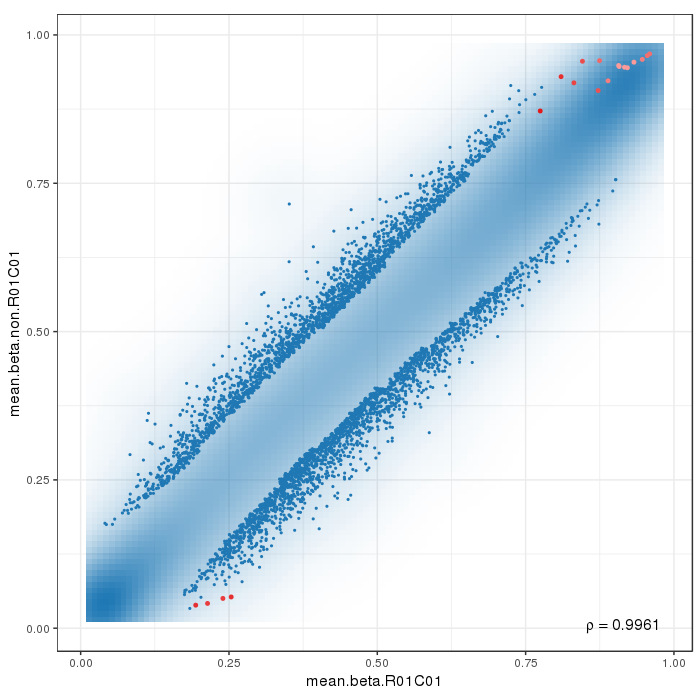

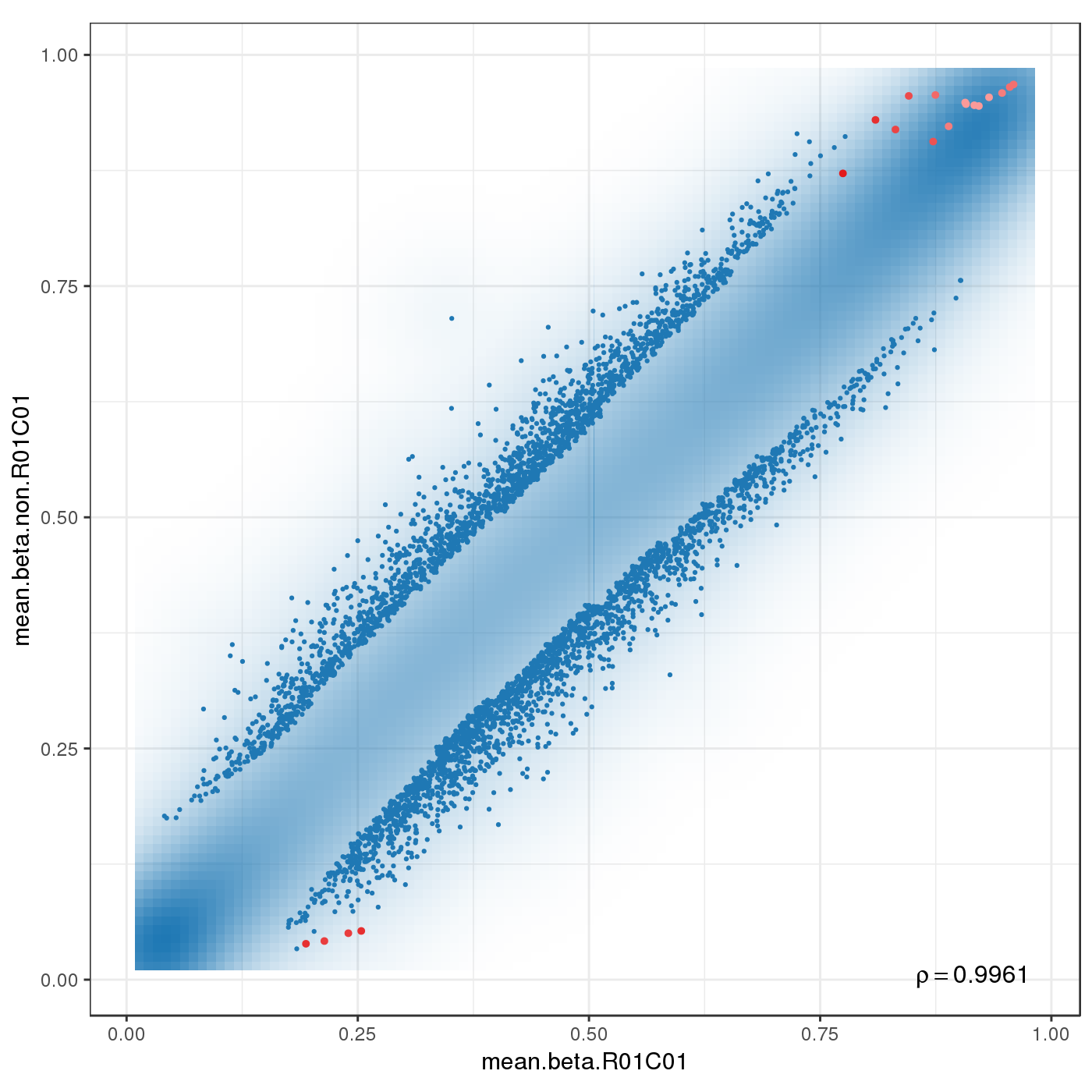

Scatterplot for differential methylation (sites). If the selected criterion is not rankGradient:
The transparency corresponds to point density. If the number of points exceeds 2e+06 then the number of points for density estimation is reduced to that number by random sampling.The1% of the points in the sparsest populated plot regions are drawn explicitly (up to a maximum of 10000 points).Additionally, the colored points represent differentially methylated sites (according to the selected criterion).
If the selected criterion is rankGradient: median combined ranks accross hexagonal bins are shown
as a gradient according to the color legend.
| comparison | |
| difference metric | |
| significance metric |

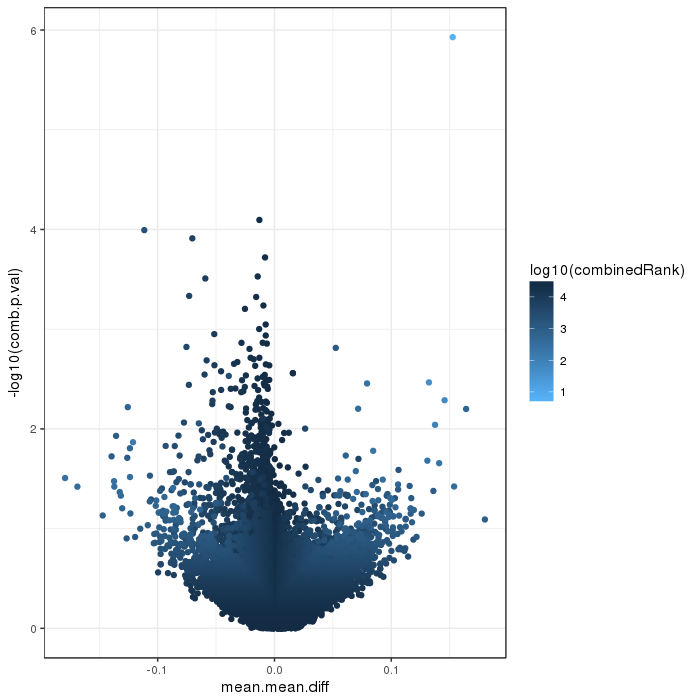

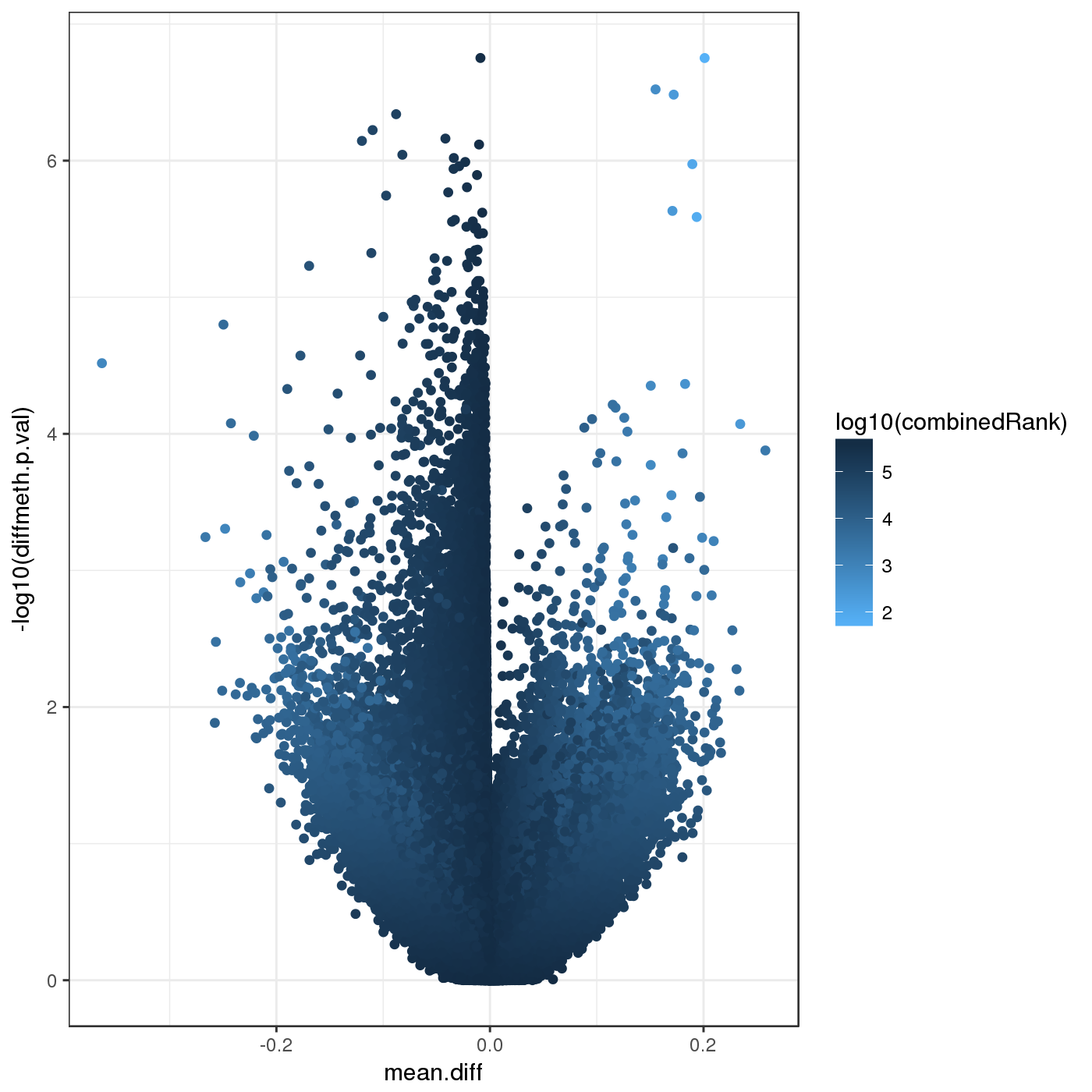

Volcano plot for differential methylation quantified by various metrics. Color scale according to combined ranking.
Differential Methylation Tables
A tabular overview of measures for differential methylation on the site level for the individual comparisons are provided in this section. Below, a brief explanation of the different columns can be found:
- id: site id
- Chromosome: chromosome of the site
- Start: start coordinate of the site
- Strand: strand of the site
- mean.g1,mean.g2: (where g1 and g2 is replaced by the respective group names in the table) mean methylation in each of the two groups
- mean.diff: difference in methylation means between the two groups: mean.g1-mean.g2. In case of paired analysis, it is the mean of the pairwise differences.
- mean.quot.log2: log2 of the quotient in methylation: log2((mean.g1+epsilon)/(mean.g2+epsilon)), where epsilon:=0.01. In case of paired analysis, it is the mean of the pairwise quotients.
- diffmeth.p.val: p-value obtained from linear models employed in the limma package (or alternatively from a two-sided Welch t-test; which type of p-value is computed is specified in the differential.site.test.method option).
- max.g1,max.g2: maximum methylation level in group 1 and 2 respectively
- min.g1,min.g2: minimum methylation level in group 1 and 2 respectively
- sd.g1,sd.g2: standard deviation of methylation levels
- min.diff: Minimum of 0 and the smallest pairwise difference between samples of the two groups
- diffmeth.p.adj.fdr: FDR adjusted p-value of all sites
- combinedRank: mean.diff, mean.quot.log2 and diffmeth.p.val are ranked for all sites. This aggregates them using the maximum, i.e. worst rank of a site among the three measures
- num.na.g1,num.na.g2: number of NA methylation values for groups 1 and 2 respectively
- mean.covg.g1,mean.covg.g2: mean coverage of groups 1 and 2 respectively (In case of Infinium array methylation data, coverage is defined as combined beadcount.)
- min.covg.g1,min.covg.g2: minimum coverage of groups 1 and 2 respectively
- max.covg.g1,max.covg.g2: maximum coverage of groups 1 and 2 respectively
- covg.thresh.nsamples.g1,covg.thresh.nsamples.g2: number of samples in group 1 and 2 respectively exceeding the coverage threshold (5) for this site.
The tables for the individual comparisons can be found here:
- R01C01 vs. non.R01C01 (based on Sentrix position)
- R01C02 vs. non.R01C02 (based on Sentrix position)
- R02C01 vs. non.R02C01 (based on Sentrix position)
- R02C02 vs. non.R02C02 (based on Sentrix position)
- R03C01 vs. non.R03C01 (based on Sentrix position)
- R03C02 vs. non.R03C02 (based on Sentrix position)
- R04C01 vs. non.R04C01 (based on Sentrix position)
- R04C02 vs. non.R04C02 (based on Sentrix position)
- R05C01 vs. non.R05C01 (based on Sentrix position)
- R05C02 vs. non.R05C02 (based on Sentrix position)
- R06C01 vs. non.R06C01 (based on Sentrix position)
- R06C02 vs. non.R06C02 (based on Sentrix position)
- Primary solid Tumor vs. Recurrent Solid Tumor (based on Type)
- FEMALE vs. MALE (based on Gender)
- HISPANIC OR LATINO vs. NOT HISPANIC OR LATINO (based on Ethnicity)
- BLACK OR AFRICAN AMERICAN vs. WHITE (based on Race)
- DECEASED vs. LIVING (based on Vital status)
- mutated vs. wild type (based on IDH1)
- negative vs. positive (based on G-CIMP status)
- female vs. male (based on Predicted Gender)
